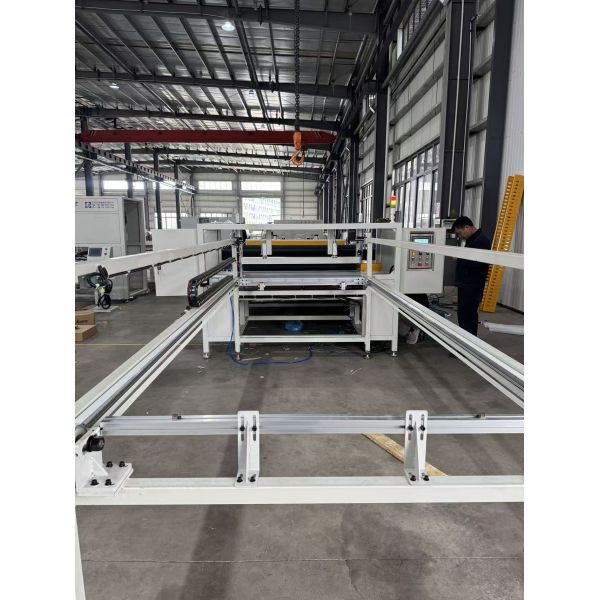

CNC Honeycomb Core Stretching and Cutting Machine for 2M Width, 6-20mm Height, Auto Palletizing
Quick Detail:
1. Designed for honeycomb core stretching, precise cutting, and automatic palletizing.
2. Max. stretching width: 2 meters (finished width 0.8-1.3m).
3. Honeycomb cell size range: 4-15mm, height range: 6-20mm.
4. Cutting by high-speed blade with CNC length setting via HMI.
5. Automatic stacking with palletizing system, max. stacking height 1 meter.
6. Three sets of rubber rollers for stable tension and output.
Description:
This CNC Honeycomb Core Stretching & Cutting Machine is a specialized solution for manufacturing expanded honeycomb cores used in composite panels (e.g., for doors, RV floors, marine partitions). The process begins with manual adhesive application on honeycomb strips, assisted by pneumatic cylinders for alignment. The material then passes through three sets of rubber roller stretching units, which ensure uniform and stable expansion of the honeycomb cells (sizes from 4mm to 15mm, heights from 6mm to 20mm). A high-speed blade precisely cuts the stretched honeycomb core to preset lengths controlled by the touchscreen HMI. Finally, the cut cores are automatically stacked onto a pallet, with a maximum stacking height of 1 meter. With a stretching speed of 3-10 m/min and a compact 5KW power consumption, this machine is ideal for producing high-quality honeycomb cores for lightweight, high-strength sandwich panels.
Applications:
1. Stretching and cutting honeycomb cores for ecological doors (ecological doors).
2. Core material preparation for RV floors and walls.
3. Honeycomb core production for marine insulation panels and partition boards.
4. General core material for lightweight composite sandwich structures.
