PLC Fully Automatic Production Line 1300mm Aluminum Honeycomb Panel Machine

Brand Name : LONGYU

Certification : ISO9001

MOQ : 1Set/month

Price : Negotiable

Payment Terms : T/T

Supply Ability : 1Set/month

Delivery Time : 45-90 days

Packaging Details : Standard wooden case

Material : Industrial Steel Structure

Control System : PLC Automatic Control

Production Type : Automatic Honeycomb Panel Production

Adhesive System : Dual Component Glue System

Voltage : 380V,380V 50HZ 3Phase(Customized),Customized,3 phase,380V/220V 3P

Plastic processed : PVC,PVDF,PP,Polystyrene,PU/PF

Warranty : 1 Year,12 months,5 years

Color : Customizable,optional,green,Customer choice

Contact Now

Automatic Honeycomb Ceiling Panel Production Line

Technical Specifications

ItemSpecification
ModelLY-16-1300
Machine TypeAutomatic Honeycomb Panel Production Line
Applicable Board Width0.5–1.3m
Applicable Board Length1–3m
Applicable Thickness1–2mm
Production Efficiency2 boards/min
Coating Width500–1300mm
Glue Flow Rate500–4000g/min
Glue Application per m²200–500g/m²
Adhesive Flow Accuracy≤ ±5%
Glue Hole Interval8mm
Adhesive ViscosityBelow 25000mpa.s
Adhesive TypeDual Component
Press Pressure100T (Optional)
Equipment Length58m (Customizable)
Gas Source0.6–0.8MPA
Power Supply380V 50Hz Three Phase
Maximum Power320KW

PLC Fully Automatic Production Line 1300mm Aluminum Honeycomb Panel Machine

PLC Fully Automatic Production Line 1300mm Aluminum Honeycomb Panel Machine

Production Line Configuration

1. Unwinding Machine
2. Forming Machine

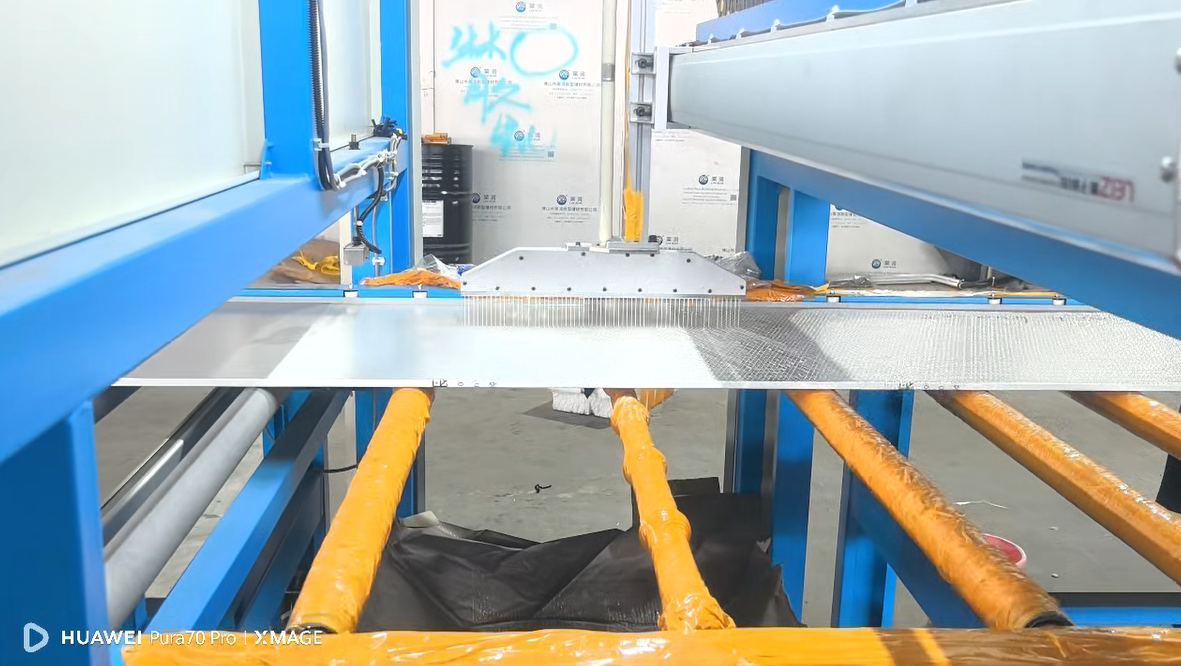

3. Double Head Automatic Glue Spraying Machine
4. Automatic Flipping Machine
5. Single Layer Hot Press Machine
6. Three Axis Palletizing Machine

PLC Fully Automatic Production Line 1300mm Aluminum Honeycomb Panel Machine

Quick Detail

1. Fully automatic honeycomb ceiling panel production line
2. Designed for composite honeycomb ceiling and wall panels
3. Production efficiency up to 2 boards per minute
4. Coating width range 500–1300mm
5. Glue flow rate 500–4000g/min
6. Adhesive flow accuracy ≤ ±5%
7. Dual-component adhesive system
8. 100T hot press machine
9. Customizable 58m production line length
10. Integrated palletizing and conveying system


PLC Fully Automatic Production Line 1300mm Aluminum Honeycomb Panel Machine

Applications

1. Honeycomb ceiling panel manufacturing
2. Aluminum honeycomb composite panels
3. Medical wall panel production
4. Decorative building panels
5. Industrial composite board production

PLC Fully Automatic Production Line 1300mm Aluminum Honeycomb Panel Machine
