Automatic SPC Composite Board Production Line PLC Control 2 Boards/Min

Name: Automatic SPC Composite Board Production Line PLC Control 2 BoardsMin
Brand: LONGYU
Price: 1 USD

Brand Name : LONGYU

MOQ : 1Set

Price : Negotiable

Payment Terms : T/T

Supply Ability : 1Set/month

Delivery Time : 45-90 days

Packaging Details : Standard wooden case

Warranty period : 12 months

Product name : SPC Automatic Production Line

Type : Automatic Production Line

Dimensions : Length 12m x Width 2.5m x Height 3m

Control system : PLC Control

Application : slitting, Produce sandwich panel, socket, Floor, Lamination machine

Certification : CE ISO, Main electric components are CE certificated.

Advantages : High Efficent,high output,Less waste

Contact Now

Automatic SPC Composite Board Production Line

Technical Specifications

Item	Specification
Model	LY-18-1300
Machine Type	SPC Composite Board Production Line
Applicable Board Width	1–1.3m
Applicable Board Length	2–3m
Applicable Board Thickness	1–3mm
Production Efficiency	2 boards/min
Glue Spreading Width	500–1300mm
Glue Flow Rate	500–4000g/min
Glue Application per m²	100–300g/m²
Adhesive Flow Accuracy	≤ ±5%
Glue Hole Interval	8mm
Adhesive Viscosity	Below 25000mpa.s
Adhesive Type	Dual Component
Press Pressure	100T (Optional)
Equipment Length	48m (Customizable)
Gas Source	0.6–0.8MPA
Power Supply	380V 50Hz Three Phase
Maximum Power	70KW

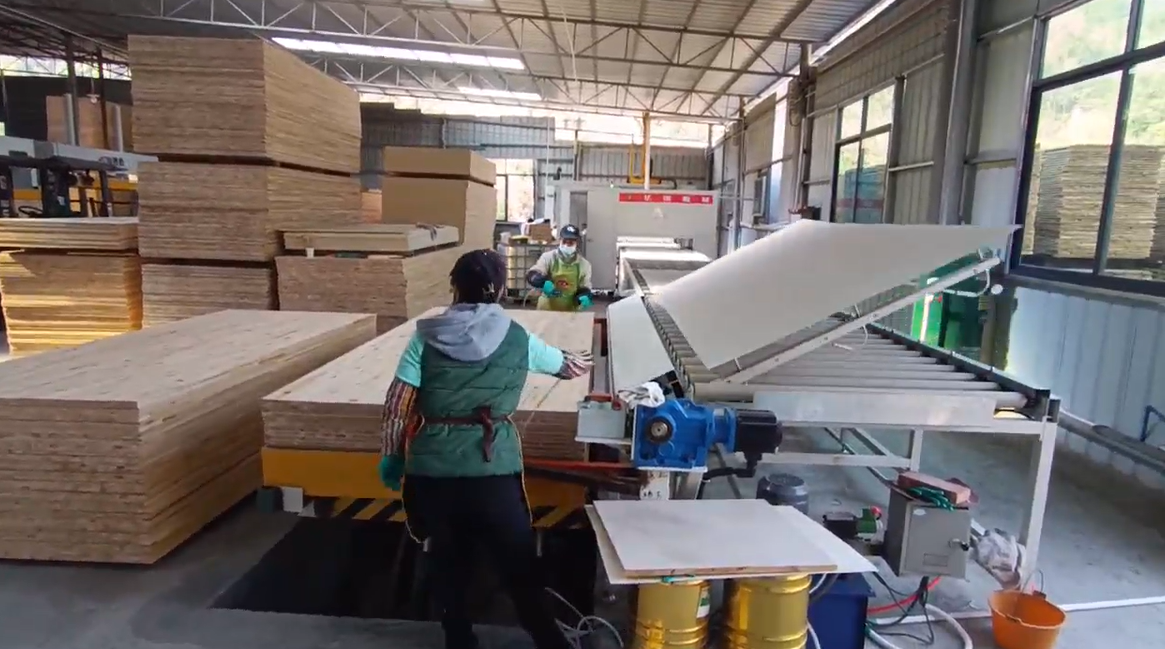

Automatic SPC Composite Board Production Line PLC Control 2 Boards/Min

Quick Detail

1. Automatic SPC composite board production system
2. Designed for SPC panel and wood board lamination
3. Production efficiency up to 2 boards per minute
4. Glue spreading width 500–1300mm
5. Glue flow rate 500–4000g/min
6. Adhesive flow accuracy ≤ ±5%
7. Dual-component adhesive system
8. 100T hydraulic press machine
9. Customizable 48m production line length
10. Intelligent PLC automatic control system

Automatic SPC Composite Board Production Line PLC Control 2 Boards/Min

Production Line Configuration

1. Three Axis Feeding Robotic Arm
2. Glue Spreading Machine
3. Cold Press Machine
4. Flipper Machine
5. Rail Platform Car
6. Three Axis Palletizing Robotic Arm
7. Elevating Positioning Platform
8. Corona Treater

Applications

1. SPC flooring panel manufacturing
2. Wood board composite panels
3. Silicon calcium insulation board lamination
4. Ecological door board production
5. Decorative building panel production
